M.A. thesis published

I have published by M.A. thesis on this blog.
It can be downloaded here

More infos here.

Have fun reading ;)

Mindmap: Eye and Head Enhanced Web-Browsing

I have finished my mindmap. The program I used (and which I can highly recommend) is Xmind, an open-source java program.
This mindmap mainly contains the information drawn from my literature. The thoughts on my own project are not included. This mindmap is basically only the theoretical part of my thesis

Here is the dropbox link to my mindmap:../E-N-H-anced_Browsing.xmind
It is released under a Creative Commons Attribution-No Derivative Works 3.0 Germany License (CC BY-NC-ND)

It contains references to the literature I used (the numbers in the bubbles). The links from the numbers to the actual texts are only available hand-written on the printed articles.
Maybe, I will release my Citavi biliography file later and add the reference numbers there. But until then, you will only be able to guess the literature behind my mindmap...

Duchowski: Neurological Substrate of the HVS

• Field of view is inspected through brief fixations over small regions of interest
• Central foveal vision lies between a visual angle of 1°-5° (this is the answer to the question in the previous post) => on a 21" monitor(distance ~60cm), the attention of the user is only on 3% of the picture
• Approx. 90% of viewing time is spent on fixations

This chapter of the book examines the neural substrate of the human visual system, from the intuitive attentional perspective (pretty complex stuff...)

Infrared Overkill

I decided to try an alternative for the IR LEDs mounted to the eye tracker. Thus, inspired by a youtube Video by W. Piechulla (I think... cannot find it again), I came up with the idea of using light bulbs as an IR source.
Conventional light bulbs emmit 95% of their energy in IR light and only 5% in visible light.
I made aa test with two 40 Watt bedlamps, but they proved to be to weak. So I bought two 100 Watt IR lamps for 9 € each and set them up. Those are usually used for curing backaches... Howver, they now function as stationary IR sources on my desk, so that I am able to use GazeTracker in "Remote-Tracking" mode with 2 glints. Doing so, I no longer have to keep my head still for an accurate tracking... but now I have to full infrared overkill :)

Experimenting with FaceAPI

How do I look??

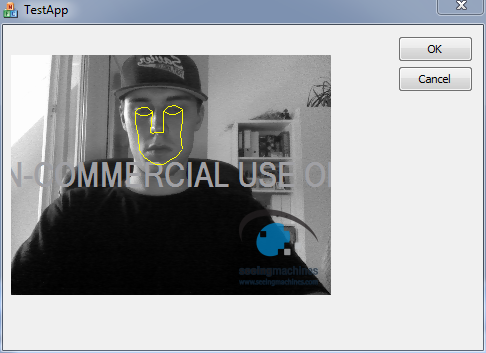

Works good without Eye-Tracker

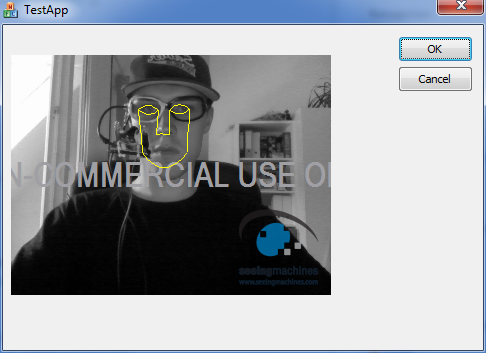

Works slightly worse with my eye tracker goggles on ;)

Howto: Hide the cursor in Windows

A problem I had during the development of my gaze-enhanced tab switching, was that the mouse cursor was diverting the user's gaze. That's why I decided to hide the cursor, while gaze control is active.

A major problem here was that the .net funktions Cursor.Hide() and WinApi ShowCursor(false) are only valid for the user control they are called from.
I searched for a way to hide the cursors globally in windows.

One possibility which came to my mind was to change the Windows cursor temporarily (as you can also do it via System Control->Mouse Settings) to an invisible dummy cursor, which is basically just a .cur file without any content. The information for the currently active cursors is stored in the Windows registry. Reading from and changing the registry is not that big of a problem for C#.

So here is what I had to do:

1. Store the current cursor path
2. Change the cursors "Arrow" and "Hand" to the invisible.cur file
3. Force a reload of the registry
4. Later: restore the original cursors again.

After the jump is the code, which does what I wanted to accomplish. It is called on pressing the hotkey combination for "enable gaze control", which I set to the same hotkey combo as "show tab previews" in firefox :)

C#: HowTo directly change a setting in an "*.exe.config" file

I had been searching for more than half a day for a way to directly change the values in the appSettings section in the  *.exe.config of my application. The problem is that the settings are read-only. I found no way to write to the *.exe.config file. I neither found a class or a method online to do this.
So I created my own method which directly accesses the *.exe.config file by making use of its XML structure.
Thus, I am able to add and change nodes and ultimately save the XML file.

Here is the code:

Processing Global Hotkey Events

I want to trigger an Event, everytime the ESC Key is pressed.
As shown below, this is npt that hard, when the program is in focus. If it out of focus, the event is not triggered.
Thus, I need global hotkey processing.

I found a page, where this method is explained using a custom class, which utilized Hooks.

More here:
http://www.tutorial-board.de/index.php?page=Thread&threadID=382
http://www.codeproject.com/KB/cs/globalhook.aspx
http://dotnet-snippets.de/dns/globale-hotkeys-tastenkombinationen-SID356.aspx

Handling the ESC Key in C#

Found this here: http://channel9.msdn.com/forums/TechOff/224745-Escape-Key-Event-Bug-C/?CommentID=224767

Escape Key is a command key, so you should achieve this with another trick, for example:

using System;
using System.Windows.Forms;

namespace HandleEscapeKeyDemo
{
    public partial class MainForm : Form
    {
        public MainForm()
        {
            InitializeComponent();
        }

        protected override Boolean ProcessCmdKey(ref Message msg, Keys keyData)
        {
            if (keyData == Keys.Escape)
            {
                OnPressEscapeKey();
            }
            return true;
        }

        private void OnPressEscapeKey()
        {
            MessageBox.Show("Escape Key Is Pressed");
        }
    }
}

Sheva

WORKS!

Trying to understand the smoothing algorithm from EyeWriter

The algorithm looks very simple:
There is one parameter, which controlls the intensity of the smoothin effect.

The formula is structured like this

NewCursorPosition =
       SmoothingFactor * OldCursorPosition
      + (1-SmoothingFactor) * ActualGazePosition

Code from testApp.cpp Line 62
   eyeSmoothed.x = CM.smoothing * eyeSmoothed.x + (1-CM.smoothing) * screenPoint.x;

One example for this:

NewPos = 0,97 * 487 + (1-0,97) * 705
              = 472 + 21
              = 493


The difference between OldPos and New Pos is 493-487 = 5px. This means, that the cursos slowly adopts to the actual gaze position without large jumps..
Increasing the Smoothing Factor leads to a much slower moving of the cursor, decreasing it, results in an abrupt jumping of the cursor, which gives it less stability.

From a first impression, the GT algorithm does not work as good as this simple and lean EyeWriter algorithm, AND uses a much more complicated logic. Therefore, I probably could implement this very simple algorithm instead.

However, I need to understand the GT algorithm first in order to decide.
